MobileID for AD FS enables Multi-Factor-Authentication (MFA) capabilities for users that are logging on using Microsoft Active Directory Federation Services (AD FS).

Microsoft AD FS - MobileID MFA Integration

MobileID for AD FS enables Multi-Factor-Authentication (MFA) capabilities for users that are logging on using Microsoft Active Directory Federation Services (AD FS).

You can install the MobileID MFA Adapter on a single AD FS instance. If you have an AD FS farm deployment, you will need to install MobileID MFA Adapter on all AD FS instances in the farm to enable MFA.

Table of Contents

• System Requirement
• Runtime Installation - Full Tutorial
• Operational Tasks
• Uninstallation of the binaries
• Upgrade
• Troubleshooting
• Installation of the Build Environment

System Requirement

A Mobile ID Account is required. Please check the following points before you continue with this tutorial:

• Read the Mobile ID Reference Guide chapter 2 and 8
• You got your unique AP_ID (Application Provider Identifier) from Swisscom
• You have created a PFX file (PKCS#12 / private key / with a .p12 file extension) according to chapter 8. In this tutorial it is referred as YourMobileIdKeyFile.p12
• You have created a CRT-file (X509 Cert / public key) and wrote down the value of the thumbprint (sometimes called fingerprint). In this tutorial that value is required for the SslMidClientCertThumbprint configuration in the myconfig13.xml. To get a SHA1 fingerprint: $ openssl x509 -in YourMobileIdCrtFile.crt -fingerprint -noout
• The source IP address (or range) of your AD FS server (or the proxy) has been whitelisted on the Mobile ID Firwall (IP whitelist)

Runtime Environment

Installer v1.3.x

• Works with Microsoft Windows Server 2016, 2019, 2022

Installer v1.2.x

• Works with Microsoft Windows Server 2012 R2

Build Environment

If you don't want to build from source code, the compiled binaries and a setup program can be downloaded from the binaries subfolder.

• Microsoft Visual Studio 2022 (which includes Microsoft .NET Framework 4.8.*)
• The file Microsoft.IdentityServer.Web.dll. The DLL file can be copied from a Microsoft Windows Server instance.
• InnoSetup if you want to rebuild the setup program

---

Runtime Installation - Full Tutorial

For this tutorial we use a Windows Server 2022 instance from Amazon Elastic Compute Cloud (Amazon EC2) to build an environment from scratch to demo Mobile ID MFA using AD FS.

Tutorial Overview

Step 1: Create Windows Server Instance
Step 2: Install AD Domain
Step 3: Install ADFS Core
Step 4: Add Test User
Step 5: Install MID/ADFS Enabler
Step 6: Setup MID Certs
Step 7: Login with MID

Step 1: Create Windows Server Instance

Create a new Amazon Machine Image (AMI) Windows Server instance

If you are not familiar with Amazon EC2, please read their GetStarted Tutorial.

• Select Microsoft Windows Server 2022 Base (Datacenter edition) as Amazon Machine Image (AMI)
• Select instance type. We recommend t3.large as a start.
• Create a VPC, enable Auto Public IP
• Create a SecurityGroup and make sure your source IP address is whitelisted in the inbound RDP rule
• Create and associate an Elastic IP Address (EIP) and make sure this IP address has been whitelisted on the Mobile ID Firewall.
• Select allow dissassociate.
• Click the Connect Button, select RDP client and download the remote desktop file to your Desktop
• Click Get password, select your key pair and write down the Windows password

Note: You can anytime stop or start an instance, which helps to keep costs low. Only run the instance when it is really used.

Connect to the Windows Server instance

• On your Desktop, start the Remote Desktop Client and load the RDP Profile
• In the RDP Client, adjust the Screen Resolution
• In the RDP Client, select your local drive (gain access to local files)
• Save the changes to your local remote desktop file
• Connect to the Windows Server and login with the password retrieved in step above

Basic configuration

• Adjust the timezone of your Windows Server
• Adjust the region format
• Open Server Manager -> Local Server: Disable IE Enhanced Security Configuration
• Copy file from your local disk to the Windows Server's C:\Users\Administrator\Downloads.

You need at least these files:

• YourMobileIdKeyFile.p12 - Mobile ID account PFX file (PFX/PKCS#12 format with .p12 file extension)
• midadfs_setup_1.3.*.exe - Latest Installer Binary
• myconfig13.xml - Configuration file
• sdcs-root4.crt - Swisscom Root CA 2 Cert
• sdcs-root2.crt - Swisscom Root CA 4 Cert

Please adapt the myconfig13.xml as you wish. At least the following parameters must be changed to match your own account and key details:

• AP_ID (Application Provider Identifier - you will usually get this information with the Swisscom welcome email)
• SslMidClientCertThumbprint (the SHA1 thumbprint of your account's public certificate: $ openssl x509 -in YourMobileIdCrtFile.crt -fingerprint -noout)
• DtbsPrefix (DataToBeSigned prefix text - you will usually get this information with the Swisscom welcome email)

Verify the connectivity to Mobile ID API

You can either use Internet Explorer to try to connect to https://mobileid.swisscom.com (which should return a 404/PageNotFound) or you can use the PowerShell Script Get-RemoteSSLCertificate.ps1:

cd "C:\Users\Administrator\Downloads\"
$cert=(.\Get-RemoteSSLCertificate.ps1 mobileid.swisscom.com)
Set-Content mobileid.swisscom.com.cer -Encoding Byte -Value $cert.Export('Cert')

Now check if the file mobileid.swisscom.com.cer has been created by the script. If it exists it means the connectivity worked. Also check if the certificate is valid (open the file).

Note: There are also other critical connectivity requirements such as ldap.swissdigitcert.ch.

Step 2: Install AD Domain

$secpass=ConvertTo-SecureString "pass@word1" -AsPlainText -Force
Install-WindowsFeature -Name AD-Domain-Services -IncludeManagementTools
import-module ADDSDeployment
Install-ADDSForest -DomainName "contoso.intern" -InstallDNS -SafeModeAdministratorPassword $secpass

This will ask you to reboot the System.

Step 3: Install ADFS Core

The ADFS Service will run in the context of a GMSA Account. Create a GSMA Account:

Add-KdsRootKey -EffectiveTime ((get-date).addhours(-10))
New-ADServiceAccount FsGmsa -DNSHostName adfs1.contoso.intern -ServicePrincipalNames http/adfs1.contoso.intern

For ADFS to work, we need a Certificate. The following lines create a self signed certificate with the required Subject Name and Subject Alternative Names.

$selfSignedCert = New-SelfSignedCertificate -DnsName adfs1.contoso.intern,enterpriseregistration.contoso.intern,adfs1.contoso.intern -CertStoreLocation cert:\LocalMachine\My
$certThumbprint = $selfSignedCert.Thumbprint
dir Cert:\LocalMachine\My

Install the self-signed certificate to have the required trust:

• Run mmc.exe
• Add snap-in Certificates (Computer)
• Go to Certificates>Personal>Certificates
• Right-click on adfs1.contoso.intern and select export
• Double-click the exported adfs1.contoso.intern.cer and install it to Local Machine

Install ADFS Federation:

Install-WindowsFeature -IncludeManagementTools -Name ADFS-Federation
Import-Module ADFS
Install-AdfsFarm -CertificateThumbprint $certThumbprint -FederationServiceDisplayName "Contost ADFS Test" -GroupServiceAccountIdentifier "contoso.intern\FsGmsa$" -FederationServiceName "adfs1.contoso.intern"
Set-AdfsProperties -EnableIdpInitiatedSignonPage $true

In the internal DNS Service of AD, configure the following A Record and a CNAME. Please replace the IP accordingly.

$ipAdress = "10.0.0.25"
Add-DnsServerResourceRecordA -Name "adfs1" -ZoneName "contoso.intern" -AllowUpdateAny -IPv4Address $ipAdress -TimeToLive 01:00:00
Add-DnsServerResourceRecordCName -Name "enterpriseregistration" -HostNameAlias "adfs1.contoso.intern" -ZoneName "contoso.intern"

• Open Edge Browser and visit: https://adfs1.contoso.intern/adfs/ls/IdpInitiatedSignon.aspx
• Add this site to the trusted sites list.
• View the site's certificate details and click Install Certificate, select Local Machine

At this point we have the basic ADFS Demo Setup (without MID/ADFS Authentication Provider) completed.

Step 4: Add Test User

• Run Server Manager -> Tools -> Active Directory Users and Computers
• Go to contoso.intern -> Users -> right-click and select New -> User
• Set First- and Last name, User logon name, click next
• Set password and only select Password never expires, finish
• Double-click User and select Telephones-register
• Set a Mobile phone number that has an active MobileID account! It works in the format +41-79 xxx xx xx.

Step 5: Install MID/ADFS Enabler

Run midadfs_setup_1.3.*.exe (as admin). Check Logs in Event Viewer and in C:\Program Files (x86)\MobileIdAdfs\v1.3\inst.

Make sure, the it became available in ADFS Management Console:

Get-AdfsAuthenticationProvider -Name MobileID13

Enable MFA in ADFS, Run "Server Manager" -> "Tools" -> "AD FS Management"

• AD FS Management: AD FS -> Service -> Authentication Methods -> Edit Mulit-factor Authentication Methods -> Select Mobile ID Authenticator v1.3
• AD FS Management: AD FS -> Relying Party Trusts -> Add Relying Party Trust...
• Select Claims aware
• Select Enter data about the relying party manually
• Display name mobileid.ch
• Select only Enable support for the SAML 2.0 WebSSO protocol and set value https://mobileid.ch
• Next, add https://mobileid.ch as Relying party trust identifier!
• Next, select Permit everyone and require MFA
• Once finished, open it again and go to Endpoints-tab and edit the SAML endpoint to set Binding to Redirect (to https://mobileid.ch)

Note: The steps above are for simple demo purposes only!

Copy the Swisscom Root CA certificates to the folder C:\Program Files (x86)\MobileIdAdfs\v1.3\certs

• C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\sdcs-root2.crt
• C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\sdcs-root4.crt

Load the MID/ADFS configuration file myConfig13.xml.

cd "C:\Program Files (x86)\MobileIdAdfs\v1.3"
.\import_config.ps1 "C:\Users\Administrator\Downloads\myConfig13.xml"

Step 6: Setup MID Certs

Right-click your SSL Client certificate file

• Install PFX
• Local Machine
• Click Next twice
• Enter passphrase
• Automatically select the certificate store based on the type of certificate
• Click Next and finish

Only if AP Client Cert is self-signed, do this:

• Run mmc.exe
• Add/Remove Snap-in…, select Certificates
• snap-ins panel, click Add > Computer account, click Next, Finish
• Local Computer; right-click Trusted People, navigate to All Task, then Import,
• this opens the Certificate Import Wizard; clicks next,
• locate the PFX file in File to Import, next, enter passphrase
• automatically select the certificate store based on the type of certificate
• clicks next twice, finish

IMPORTANT: Always run mmc.exe as Administrator to import the certs into LocalMachine (the certmgr.msc imports to CurrentUser only)

Give ADFS Service Account the required access to the client certificate If winhttpcertcfg is not in the path, you might find it in C:\Program Files (x86)\Windows Resource Kits\Tools\. If you do not already have the WinHttpCertCfg.exe tool on your Windows Server, download and install it from Microsoft.

Please change the subject (in the example below it is adfs-dev.swisscom.ch) according to your own client certificate subject. Please change the user (in the example below it is contoso\fsgmsa$) according to your own server user.

cd "C:\Program Files (x86)\Windows Resource Kits\Tools"
.\winhttpcertcfg.exe -g -c LOCAL_MACHINE\My -s adfs-dev.swisscom.ch -a contoso\\fsgmsa$

Step 7: Login with MID

Finally, open the Internet Browser (Ms Edge) and visit: https://adfs1.contoso.intern/adfs/ls/IdpInitiatedSignon.aspx

You should be able to select mobileid.ch and then enter the test user credentials. This should invoke a Mobile ID authentication request to the phone number configured for this test user.

---

Operational Tasks

Mapping of user attributes

Mobile ID authentication provider need to retrieve the mobile ID of the user once the user has been identified with the primary authentication. The current release relies on the following LDAP attributes in Active Directory:

• userPrincipleName: this is the username that the user authenticates with the primary authentication. Example: [email protected]
• mobile: a telephone number to which the Mobile ID authentication message will be sent to. Example: [phone] or 41791234567.
• serialNumber: (only when the config parameter UserSerialNumberPolicy has a non-default value) the serial number of the user. Example: MIDCHE0123456789

For Mobile ID authentication, userPrincipleName and mobile must be defined.

Configuration change

If you have modified a configuration file, say C:\midadfs\v1.3\MobileId.Adfs.AuthnAdapter.xml, after installation, you need re-import the config file into ADFS with PowerShell and restart the and restart the Active Directory Federation Services and any dependent services:

Import-AdfsAuthenticationProviderConfigurationData -FilePath "C:\midadfs\v1.3\MobileId.Adfs.AuthnAdapter.xml" -Name "MobileID13"
net stop drs
net stop adfssrv
net start adfssrv
net start drs

---

Uninstallation of the binaries

If you have installed Mobile ID authentication provider with the setup program, you can uninstall it via Control Panel > Uninstall program.

If you have installed Mobile ID authentication provider without a setup program, you can uninstall it as follows:

1. In ADFS Management Console, unselect Mobile ID Authentication from any configured Multi-factor authentications.

2. Unregister the Mobile ID Authentication Provider from ADFS: In Windows PowerShell prompt, enter Unregister-AdfsAuthenticationProvider MobileID

3. Restart ADFS service and dependent services.

4. Remove all DLLs of Mobile ID Authentication Providers from GAC: If gacutil.exe is available in your runtime environment, you can also remove the DLL from GAC with gacutil.exe /u MobileId.Adfs.AuthnAdapter (repeat it for all DLLs installed earlier).

5. If you don't want to keep the Mobile ID logs in Windows Event Log: Close Windows Event Viewer. In Windows Command Prompt, enter

   wevtutil.exe um C:\midadfs\v1.3\lib\MobileId.ClientService.Swisscom-MobileID-Client.etwManifest.man
   wevtutil.exe um C:\midadfs\v1.3\lib\MobileId.Adfs.AuthnAdapter.Swisscom-MobileID-Adfs.etwManifest.man
   del /Q C:\Windows\System32\winevt\Logs\Swisscom-MobileID-*.*



---

Upgrade

Unless otherwise specified, an binary upgrade is an uninstallation of the binaries, followed by the installation of Mobile ID Authentication Provider (step 3).

---

Troubleshooting

Windows Event Log

The Analytic and/or Debug channels Application and Services\Swisscom\MobileID\* can be enabled / disabled on demand. Alternatively, PerfView can be used to capture the logging events written by Mobile ID Authentication Provider on demand.

Trace files

The logging / tracing of Mobile ID Authentication Provider can also be controlled via the dotNet tracing configuration mechanism. The configuration file is shared with configuration file ADFS service, which is located in C:\Windows\ADFS\Microsoft.IdentityServer.ServiceHost.exe.config. Mobile ID Authentication Provider writes tracing messages to MobileId.WebClient and MobileId.Adfs.AuthnAdapter. You can modify the configuration file to enable / adjust tracing messages of Mobile ID Authentication Provider.

The sample configuration segment write all tracing messages to Windows Event Log and the files C:\midadfs\MobileIdClient.log, C:\midadfs\MobileIdAdfs.log.

...
<system.diagnostics>
  <switches>
    <!--  The next setting specifies the "global" logging severity threshold. In order of decreasing verbosity,
          the value can be one of "All", "Verbose", "Information", "Warning", "Error", "Critical", "None".
    -->
    <add name="MobileId.WebClient.TraceSeverity" value="All"/>
    <add name="MobileId.Adfs.TraceSeverity" value="All"/>
  </switches>

  <sources>
    ...
    <source name="MobileId.WebClient" switchName="MobileId.WebClient.TraceSeverity" switchType="System.Diagnostics.SourceSwitch">
      <listeners>
        <remove name="Default"/>
        <!-- This listener writes to Windows Event Log (Log=Application, EventSource="MobileID") -->
        <add name="eventLog" type="System.Diagnostics.EventLogTraceListener" initializeData="MobileID">
          <filter type="System.Diagnostics.EventTypeFilter" initializeData="Information" />
        </add>
        <!-- This listeners appends to a file for debugging purpose -->
        <add name="logfile" type="System.Diagnostics.TextWriterTraceListener" initializeData="C:\midadfs\MobileIdClient.log">
          <filter type="System.Diagnostics.EventTypeFilter" initializeData="All"/>
        </add>
      </listeners>
    </source>
    <source name="MobileId.Adfs.AuthnAdapter" switchName="MobileId.Adfs.TraceSeverity" switchType="System.Diagnostics.SourceSwitch">
      <listeners>
        <remove name="Default"/>
        <!-- This listener writes to Windows Event Log (Log=Application, EventSource="MobileID.Adfs") -->
        <add name="eventLog" type="System.Diagnostics.EventLogTraceListener" initializeData="MobileID.Adfs">
          <filter type="System.Diagnostics.EventTypeFilter" initializeData="Information" />
        </add>
        <!-- This listens appends to a file for debugging purpose -->
        <add name="logfile" type="System.Diagnostics.TextWriterTraceListener" traceOutputOptions="ProcessId,ThreadId,DateTime" initializeData="C:\midadfs\MobileIdAdfs.log">
          <filter type="System.Diagnostics.EventTypeFilter" initializeData="All"/>
        </add>
      </listeners>
    </source>
  </sources>
  <trace autoflush="true" indentsize="2"></trace>
</system.diagnostics>

The private key is not accessible

While you set up your certificates, you could get errors regarding the access to the private key or be asked to do it with another user. Here are some hints to correct it:

• Confirm your certificate and your key are present on the device.
• Try to use the WinHttpCertCfg with the direct path to the PFX-file: ".\winhttpcertcfg.exe -i -c "C:\YourMobileIdKeyFile.pfx" -s -c -a contoso\\fsgmsa$"
• Validate and confirm where the keys are saved and by which user. You can use tools such as FindPrivateKey.
• Try re-importing the keys from scratch.

New sources in the Windows EventLog

In order to create new sources in the Windows EventLog, you could need additional permission to read all the event logs and ensure the source name is unique. An administrator permission can be granted temporarily to the service account.

---

Installation of the Build Environment

1. Check out the source code from here to your development PC, for example, folder H:\midadfs (subfolders are Service and AuthnAdapter).

2. Copy the file Microsoft.IdentityServer.Web.dll from a Windows 2012 R2 server which has the role Active Directory Federation Services (AD FS) installed. By default, the DLL file is located in C:\Windows\ADFS on your server. The DLL file should be copied to the folder of the project AuthnAdapter. In the example above, it is H:\midadfs\AuthnAdapter.

3. Create your own assembly-signing key mobileid.snk, either in visual studio (right-click a project > Properties > Signing > Sign the assembly > create new key), or with command line (sn.exe -k 2048 mobileid.snk). Place it in the folder where the *.sln file is located (H:\midadfs in the example).

The solution should be ready to build now. Each project folder has a README file which briefly describes the project. The target audience is developer.

mobileid-enabler-adfs's Issues

MobileID authentication fails because Swisscom Root CA Certificate appears to be revoked (Windows Server 2016/2022)

MobileID user authentication with ADFS are no longer working because the validation of the MobileID response fails. According to the ADFS logs, there seems to be an invalid signature in the MobileID user authentication response.

The MobileID signature response comes with a user (end entity) certificate issued/signed by the Swisscom Rubin CA 3 (which is an intermediate CA certficate). Latter is issued/signed by the Swisscom Root CA 2 (the root CA certificate). The full certificate chain is:

[ Swisscom Root CA 2 ] >> [ Swisscom Rubin CA 3 ] >> [ MobileID User (End Entity) Certificate ]

It seems that the validation of the MobileID signature fails because the root certificate (Swisscom Root CA 2) appears to be revoked. With a revoked Root CA certificate, the MobileID signature validation will obviously fail.

Because Windows considers the Swisscom Root CA 2 certificate revoked, all certificates it issued (and so on down the path) are considered invalid.

Rename MobileIdClient Configuration Parameters

Please rename some of the configuration parameters as described below. This should help to better understand the purpose of the variable.

Current configuration example:

  <mobileIdClient
    AP_ID = "mid://adfs-dev.swisscom.ch"
    SslKeystore = "LocalMachine"
    SslCertThumbprint = "19cb073f974729d9fec8cb1a0c50866886fcdeba"
    SslRootCaCertDN = "C=CH, O=Swisscom, OID.2.5.4.97=VATCH-CHE-101.654.423, OU=Digital Certificate Services, CN=Swisscom Root CA 4"
    SslRootCaCertFiles = "C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\Swisscom_Root_CA_2.crt;C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\Swisscom_Root_CA_4.crt"
    SignatureProfile = http://mid.swisscom.ch/Any-LoA4
    DtbsPrefix = "ADFS Demo: "
    RequestTimeOutSeconds = "60"
    PollResponseIntervalSeconds = "1"
    PollResponseDelaySeconds = "3"
    ServiceUrlPrefix  = https://mobileid.swisscom.com/soap/services/
    SecurityProtocolType = "Tls12"
    EnableSubscriberInfo = "false"
    DisableSignatureValidation = "false"
    DisableSignatureCertValidation = "false"
  />

1. sslRootCaCertDN
   According to the src code, this DN is loaded when the SSL connection is established to mobileid.swisscom.com , which is illogical and makes no sense. Please adjust the code so that we can remove this variable from the configuration completely.
2. SslKeystore
   Rename to SslMidClientKeystore. This should make it clearer that this is only about the MobileID AP client certificate and not about server or SignResp certificates.
3. SslCertThumbprint
   Rename to SslMidClientCertThumbprint. This should make it clearer that this is only about the MobileID AP client certificate and not about server or SignResp certificates.
4. SslRootCaCertFiles
   Rename to SignRespCertFiles. This makes confusion with the server certificate (mobileid.swisscom.com) less likely.
5. DisableSignatureValidation
   Rename to DisableSignRespValidation. This makes confusion with the server certificate (mobileid.swisscom.com) less likely.
6. DisableSignatureCertValidation
   Rename to DisableSignRespCertValidation. This makes confusion with the server certificate (mobileid.swisscom.com) less likely.

The new configuration should then look like this:

  <mobileIdClient
    AP_ID = "mid://adfs-dev.swisscom.ch"
    SslMidClientKeystore = "LocalMachine"
    SslMidClientCertThumbprint = "19cb073f974729d9fec8cb1a0c50866886fcdeba"
    SignRespCertFiles = "C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\Swisscom_Root_CA_2.crt;C:\Program Files (x86)\MobileIdAdfs\v1.3\certs\Swisscom_Root_CA_4.crt"
    SignatureProfile = http://mid.swisscom.ch/Any-LoA4
    DtbsPrefix = "ADFS Demo: "
    RequestTimeOutSeconds = "60"
    PollResponseIntervalSeconds = "1"
    PollResponseDelaySeconds = "3"
    ServiceUrlPrefix  = https://mobileid.swisscom.com/soap/services/
    SecurityProtocolType = "Tls12"
    EnableSubscriberInfo = "false"
    DisableSignRespValidation = "false"
    DisableSignRespCertValidation = "false"
  />

Make value of mss:SignatureProfile configurable

Currently, in the the WebClientImpl.cs you will find the <mss:SignatureProfile>-element with a hardcoded value http://mid.swisscom.ch/MID/v1/AuthProfile1. Today, this signature profile is deprecated and should no longer be used.

See Mobile ID Reference Guide section 3.2.1.

The signature profile value should be configurable, so that it can be changed to any other supported profile such as:

• http://mid.swisscom.ch/Any-LoA4 (default)
• http://mid.swisscom.ch/STK-LoA4
• http://mid.swisscom.ch/Device-LoA4

Transport Layer Security (TLS) 1.0 not supported on Windows Server 2016 or newer

TLS 1.0 is currently hard coded and not a problem with Windows Server 2012 R2 (as specified as system requirement). However, newer Windows Server versions such as Windows Server 2016 will fail the connection if TLS 1.0 is used.

The TLS version should be configurable, so that it can be set to TLS 1.2.

Refer to: https://github.com/MobileID-Strong-Authentication/mobileid-enabler-adfs/blob/main/Service/WebClientImpl.cs line 754

ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls;    // TODO: make TLS version configurable

README: Add full description of available parameters

Add full description of available parameters to the README file.

Add support for MobileID Geofencing (enhancement)

Please add support for the MobileID Geofencing option.
Make this feature configurable. If enabled, the request shall contain the additional service to request #geofencing.

"AdditionalServices": [ { "Description": "http://mid.swisscom.ch/as#geofencing" } ]

It might be sufficient to add this simple option. The geofencing policy and its enforment can be handled on the MobileID backend.

Extend mobileIdClient configuration to allow the configuration of more than one Swisscom Root CA Certificate

Extend mobileIdClient configuration to allow the configuration of more than one Swisscom Root CA Certificate.
The configuration shall allow to add the new Swisscom Root CA 4 Certificate in addition to the current Swisscom Root CA 2 Certificate.

The MID/ADFS must expect that a Mobile ID Signature Response can either be based on the old "Swisscom Root CA 2" or be based on the new "Swisscom Root CA 4". It needs to be able to handle both Root CA Certificates at the same time.

More details about the Swisscom Root CA Certificates can be found here.

AD user attribute 'mobile' needs to be normalized

According to the ADFS Solution Document, the AD user phone number (mobile) is defined as follows:

mobile: a telephone number to which the Mobile ID authentication message will be sent. The
number currently need to be in the format +41ddddddddd (d=digit where the + may be omitted).
At most one telephone number can be specified. If no telephone number is specified, the user is
not enabled for multi-factor authentication with Mobile ID. Example: [phone]

In some cases, the phone number does not match this format. MID/ADFS should do some basic normalization.

For example:

• trim any whitespace
• trime - characters

Common formats I've seen in ADs are:

• [phone]
• [phone]

I guess it's quite simple to just add a basic normalization to ensure that above examples will be normalized to [phone] or 41791234567.

Error if more than one MFA method configured in AD FS

This MobileID enabler works fine if "Mobile ID Authentication" is the only selected authentication method (AD FS: "Edit Authentication Methods").

However, if a 2nd authentication method (e.g. selecting "Azure MFA" or "Certificate Authentication" as 2nd authentication method) is selected, the Mobile ID enabler won't work anymore (the auth process starts but then immediatly returns back to the previous screen).

This problem has been analysed with Microsoft Support and the error can be fixed as follows (below is a quote from Microsoft).

In the failing scenario we bail out of the processing as we couldn’t find the right AuthHandler.
ADFS logs: Passive pipeline exiting, token processing is not complete.

If only one MFA adapter is enabled, we auto select this provider automatically for the processing of the posted Context Body
If multiple Adapters are enabled, we want to select the Provider based on the Post Body containing the authMethod property.

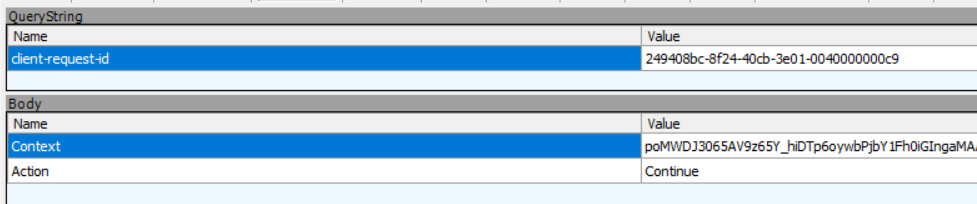

Yet this "authMethod" does not exist in the post body and it only contains CONTEXT and ACTION.

As per our docs https://learn.microsoft.com/en-us/windows-server/identity/ad-fs/development/ad-fs-build-custom-auth-method
AuthMethod must be set in the POST Body referencing the Adapter name.

But the Developer of the app seemingly has this removed in the code.
mobileid-enabler-adfs/AdapterPresentation.cs at main · MobileID-Strong-Authentication/mobileid-enabler-adfs · GitHub

Overall, this is a problem of the MFA Adapter and cannot be fixed in ADFS but requires the developer of the app to pass through the Adapter name using authMethod.

Update Installer/Build and README for latest Windows Server 2022

Update README / instructions for latest Windows Server 2022.
