React & Redux Seed Project

React with redux artitecture seed for any new projects

Quick Overview

cd react-app-redux-seed
npm install
npm start

Deployment

cd react-app-redux-seed

npm run build

Builds the app for production to the build folder. It correctly bundles React in production mode and optimizes the build for the best performance. The build is minified and the filenames include the hashes.

node run.js

Hosting the web app using Node and Express

Config in run.js

const express = require('express');
...
app.use(express.static(path.join(__dirname, 'build')));

app.get('/', function (req, res) {
  res.sendFile(path.join(__dirname, 'build', 'index.html'));
});

app.listen(3000);

The build folder with static assets is the only output produced by npm run build

The number in app.listen() is the hosting port

UI

Material-UI

https://material-ui.com/

npm install @material-ui/core --save
npm install @material-ui/icons --save

1. Add

<link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Roboto:300,400,500,700&display=swap" />
<link rel="stylesheet" href="https://fonts.googleapis.com/icon?family=Material+Icons" />

inside public/index.html

2. Edit the follow codes into src/index.js

import CssBaseline from '@material-ui/core/CssBaseline';
import { createMuiTheme } from '@material-ui/core/styles';
import { ThemeProvider } from '@material-ui/styles';
...
const theme = createMuiTheme({
});
...
ReactDOM.render(
    <Provider store={store}>
        <ThemeProvider theme={theme}>
            <Router>
               ...
            </Router>
        </ThemeProvider>
    </Provider>,
    document.getElementById('root'));

Reactstrap

https://reactstrap.github.io/

npm install bootstrap --save
npm install reactstrap@next --save

1. Import Bootstrap CSS in the src/index.js

import 'bootstrap/dist/css/bootstrap.min.css';

Structure Introduction

Used Package

Axios

As React does not include any Ajax method, Axios helps us doing GET, POST, etc request between API and React. https://github.com/axios/axios

Material-UI-next

We are based on Material-UI to build up the UI of the web. Material-UI provides the support about layout and components.

If we want to divide a div into a numbers of pieces with responsive UI, read the Layout page. https://material-ui-next.com/layout/basics/
If we want to add some components, say, textbox or nav bar, read the Component Demos and Component API page https://material-ui-next.com/demos/app-bar/

React-router

React-router provides a service of link to other pages, like but without any postback. The basic usage guide is here https://github.com/kdchang/reactjs101/blob/master/Ch05/react-router-introduction.md

React Reference

從零開始學 ReactJS（ReactJS 101）

https://www.gitbook.com/book/kdchang/react101/details This is a react tutorial for beginners in chinese.
Recommended to read chapter 3-6 for the basic usage. For the advance usage, recommended to read chapter 7-10

Coding Ide

WebStorm

https://www.jetbrains.com/webstorm/ We highly recommend using WebStorm to be the IDE of coding instead of using Notepad++. In registering with education version, it’s free.

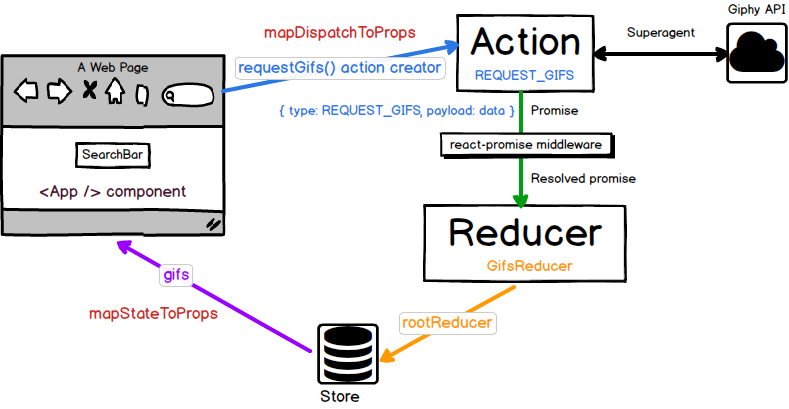

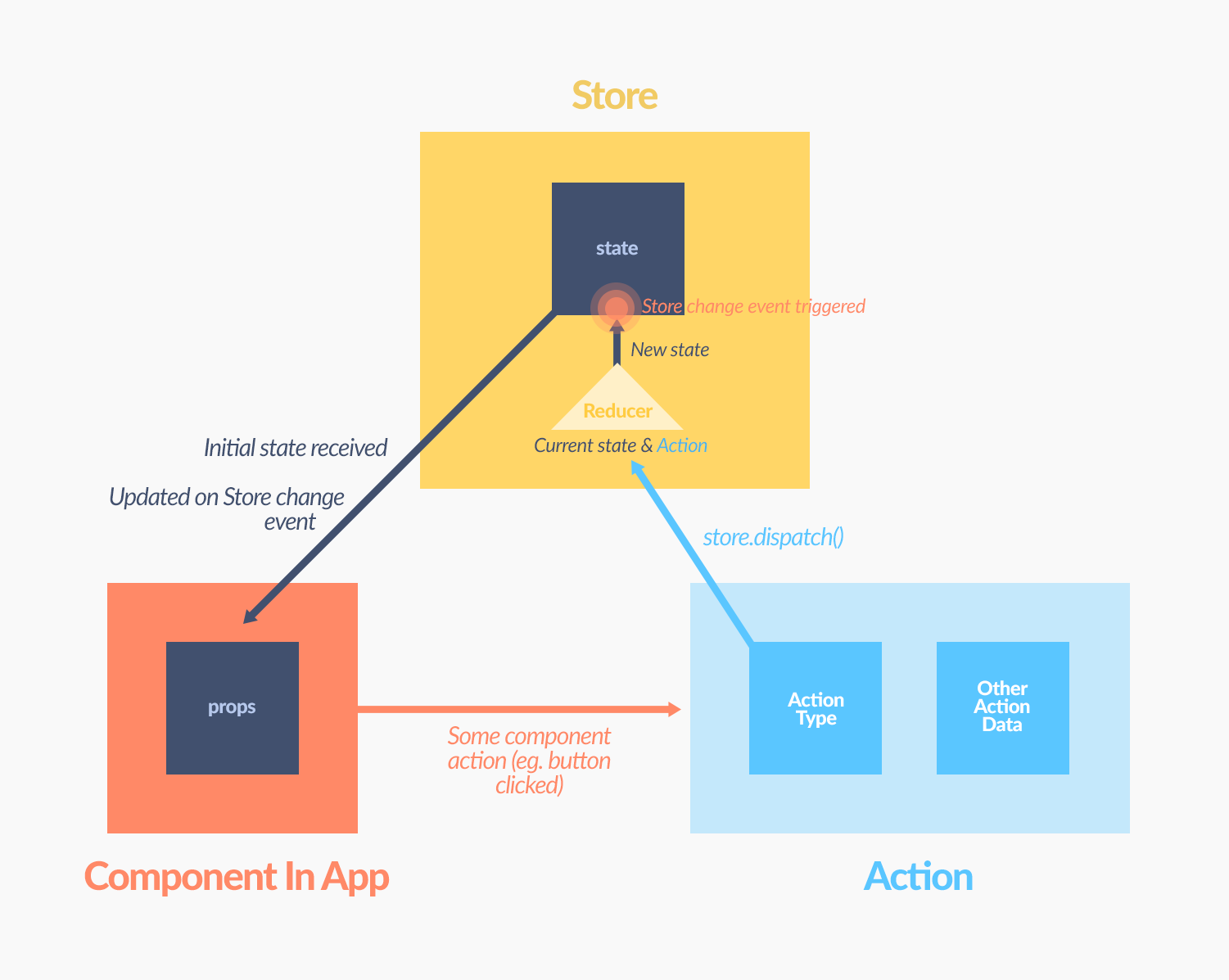

Redux

https://github.com/reactjs/redux

This plugin helps to create or update the state in react. Controls the user action in react. If we want to create a user action, follow the rules of redux.

Tutorial

http://redux.js.org/

Reference Example

https://github.com/reactjs/redux/tree/master/examples/real-world

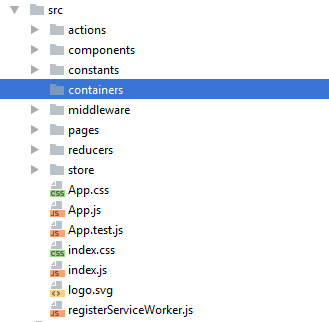

System Structure

Actions

This is the user action which sends data from the application to store. We have to describe the actions in this folder. Naming: ActionXXXX, eg. ActionSegment/ActionImage

Constants

/models

This describes the data structures of states in the application.

actionTypes.js

This js file describes the name of actions.

Reducers

This describes the user action’s actions, the application’s state changes in response. Naming: XXXX, eg. Segment/Image

Middleware

The previous version of modules/control

Containers

Concepts: https://github.com/kdchang/reactjs101/blob/master/Ch08/container-presentational-component-.md

Routing

If creates one more page, it should be created inside the Containers folder. The first letter should be capital letter

In index.js, we can setup the website routing.

This is the master page of the website. If there is a new page, it will be added here, inside the The syntax is same as component.
