Handles the MultiWii Serial Protocol to send/receive data from boards.
This is a text based / console, no GUI, it works reading data from the multicopter and/or sending commands from a computer via a serial modem. I use this module for doing different request to my multicopters in order to control them wirelessly via a raspberry pie.
To install with pip run the following command from this directory,
pip install .
Just create a MultiWii object that receives the serial port address as parameter and then you can ask for a MSP command by using the function getData, an explicit example looks like this:
from pymultiwii import MultiWii
serialPort = "/dev/tty.usbserial-A101CCVF"
board = MultiWii(serialPort)
while True:
print board.getData(MultiWii.ATTITUDE)
With the example above, you will see a stream of data on your terminal.
MSP is a protocol designed by the MultiWii community, with the idea to be light, generic, bit wire efficient, secure. The MSP data frames are structured as:
$<header>,<direction>,<size>,<command>,<crc>$
where:
- header: the ASCII characters
$\$M$ - direction: the ASCII character
$<$if the message goes to the MultiWii board or$>$if the message is coming from the board - size: number of data bytes, binary. Can be zero as in the case of a data request to the board
- command: message id of MSP
- data: values to be sent. UINT16 values are LSB first
- crc: (cyclic redundancy check) checksum, XOR of
$<size>,<command>$and each data byte into a zero sum
There is basically three types of messages to interact with a MultiWii board. Those are command, request and response. Command is an incoming message without implicit outgoing response from the board, request is an incoming message with implicit outgoing response while response is the outgoing message resulting from an incoming request.
If, e.g., the orientation of the board is needed, then a message with type request and ID = 108 must be created and then sent to the board, after being sent, the board will reply with a response.
The entire implementation of this module does not include a sleep function, which means that is very fast and efficient, the rate of communication would then depend on the computer and the board capabilities.
The module is also designed to be extremely simple to use, the next code will request and print (to the host computer) the orientation of the a MultiWii board connected to a USB port:
from pyMultiwii import MultiWii
from sys import stdout
if __name__ == "__main__":
board = MultiWii("/dev/ttyUSB0")
try:
while True:
board.getData(MultiWii.ATTITUDE)
print board.attitude
except Exception,error:
print "Error on Main: "+str(error)
This module can achieve communication back and forth of 300hz, this was achieved using a Naze32 (32bits micro-controller) board and a Odroid U3. And around 62.5hz when using a MultiWii AIO 2.0 (8bits micro-controller) board and a Raspberry Pi.
When using an 8bit MultiWii board, please change the wakeup time on the main file at line 84. The old boards need more than 10 seconds to boot up in order to be ready to start asking for data. A safe time would be:
"""Time to wait until the board becomes operational"""
wakeup = 14
If you're using something similar to a naze32 using either baseflight or cleanflight you will be able to ask for attitude and some other commands, but by default you will not be able to use the MSP_SET_RAW_RC to write pilot commands to the multiwii. In order to do that you need to activate (via the baseflight/cleanflight GUI) the SerialRX with the specific type for MSP (MultiWii Serial Protocol). The instructions for doing that on baseflight are:
- Open the CLI (while on the baseflight configurator) and type:
feature SERIALRX
and then type the following lines:
set serialrx_type=4
This will activate "msp" in order to control the multiwii via that protocol. Important: when type=4 is active, standard radio will not work... (at least on the releases I'm using).
Then you can carefully test my example "test-arm-disarm.py"... You will see the motors spin for 3 seconds. ¡¡BE CAREFUL!!

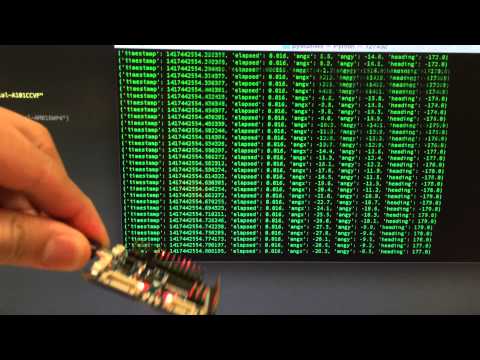

This code has no time.sleep(), so, its very fast and efficient. The output looks like this when asking or ATTITUDE:
{'timestamp': 1417432436.878697, 'elapsed': 0.016, 'angx': -26.8, 'angy': -24.8, 'heading': -84.0}
{'timestamp': 1417432436.894663, 'elapsed': 0.016, 'angx': -26.8, 'angy': -24.7, 'heading': -84.0}
{'timestamp': 1417432436.910673, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.8, 'heading': -84.0}
{'timestamp': 1417432436.926812, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.7, 'heading': -84.0}
{'timestamp': 1417432436.942629, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.7, 'heading': -84.0}
{'timestamp': 1417432436.958657, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.6, 'heading': -84.0}
{'timestamp': 1417432436.974627, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.6, 'heading': -84.0}
{'timestamp': 1417432436.990591, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.5, 'heading': -84.0}
{'timestamp': 1417432437.006598, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.5, 'heading': -84.0}
{'timestamp': 1417432437.022676, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.5, 'heading': -84.0}
{'timestamp': 1417432437.038604, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.4, 'heading': -85.0}
{'timestamp': 1417432437.054619, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.4, 'heading': -85.0}
{'timestamp': 1417432437.070593, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.3, 'heading': -85.0}
{'timestamp': 1417432437.086576, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.3, 'heading': -85.0}
{'timestamp': 1417432437.102768, 'elapsed': 0.016, 'angx': -26.7, 'angy': -24.2, 'heading': -85.0}
{'timestamp': 1417432437.118586, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.2, 'heading': -85.0}
{'timestamp': 1417432437.134683, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.2, 'heading': -85.0}
{'timestamp': 1417432437.150524, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.1, 'heading': -85.0}
{'timestamp': 1417432437.166525, 'elapsed': 0.016, 'angx': -26.6, 'angy': -24.1, 'heading': -85.0}
Using different devices and newer boards you can achieve greater rates of communication, using an oDroid U3 and a naze32 I have achieved close to 300hz.
This code is still somewhat under development, if you found a bug or a improvement, please let me know!!
I'm doing systems identification of multicopters being flown by me via a multiwii board. Why do I want to do this? I want to do very precise navigation algorithms using a motion capture system.
Systems identification is a statistical method to build mathematical models of the multicopters, to have excellent control we require a perfect mathematical model. In order to do a good sysid we require data, lots of data, data coming from the board as well as the pilot and the position in the space (motion capture), so, I require raw imu (accelerometers and gyroscopes), pilot commands (rc channels) and position (x,y,z).

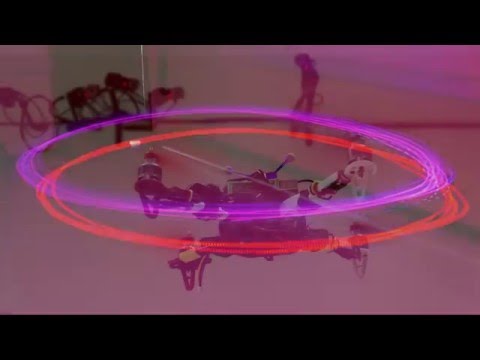

So far, I have a position controller working with the multiwii board being flow by simulink using data from the motion capture system and just sending rc channels via a 3DR robotics radio (roll, pitch, yaw, throttle), you can see a video about that here TEGO indoor position control
I works nice... but I want it to work even nicer and better!!! so, we need all the mathematical models and parameters to be as precise as possible, ergo, systems identification required.
I knew that the 3DR radio was not good enough to send data in a fast way to the ground station... So, I put onboard a Raspberry Pie, this computer ask data to the multwii and also to the motion capture system, and saves it... thats it for now.
